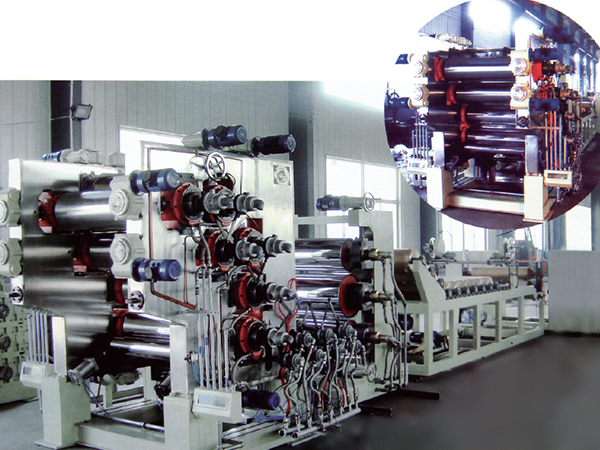

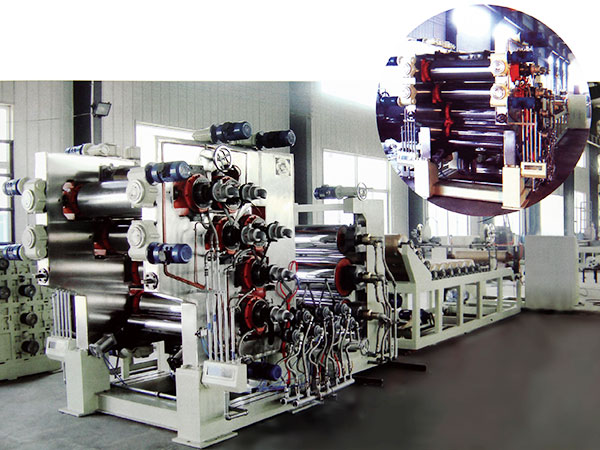

This production line is used to produce all kinds of transparent, semi-transparent and high filling Rigid PVC plastic packaging sheet, printing sheet and stretch sheet,etc.
1.It is composed of five (six)-roll calender, multiple-roll take-off device and cooling device，etc.
2.Rolls adopt peripheral drill structure with heat grinding treatment, single motor and single drive with stable transmission and adjustable speed .
3.Axis cross ,pre-loading，pull-back device are set to ensure the product’s precision.
4.Control system adopts PLC, safety and reliability , easy operation and high automation.
|
型号 Model |
SY-5Γ(L)1050 | SY-6Γ(L)1200 | SY-6Γ(L)1300 | SY-5Γ(L)1500 | SY-5Γ(L)1600 | SY-6Γ(L)1830 | SY-5Γ(L)2030 |
|---|---|---|---|---|---|---|---|
|
辊筒直径(mm) Roll diameter |
400 | 400 | 450 | 510 | 560 | 610 | 660 |
|
辊筒工作长度(mm) Roll working length |
1050 | 1200 | 1300 | 1500 | 1600 | 1830 | 2030 |
|
生产线速度(m/min) Speed of production line |
6-30 | 6-30 | 7-35 | 8-40 | 8-45 | 10-50 | 10-60 |
|
制品宽度(mm) Max.product width |
610-800 | 610-950 | 610-1050 | 720-1200 | 720-1350 | 800-1500 | 1000-1700 |
|
制品厚度(mm) Product thickness |
0.06-1.00 | 0.2-1.20 | 0.08-1.00 | 0.08-1.00 | 0.08-1.00 | 0.08-1.00 | 0.08-1.00 |
|
全线电机功率(kw) All line motor power |
115 | 136 | 215 | 235 | 290 | 380 | 570 |
|
生产能力 (t / year) Production capacity |
～3000 | ～3300 | ～4300 | ～5300 | ～6500 | ～10000 | ～13000 |
