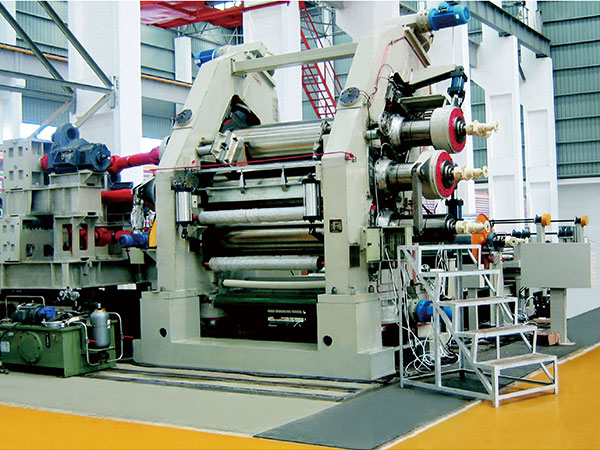

It is mainly used for one-face once continuous coating rubber sheet of fiber cord, canvas and other woven material ,or calendering pure rubber sheet for engineering tyre inner liner.
1.It adopts peripheral drilled roll with good heating and cooling effects.
2.Axis cross ,pre-loading，pull-back device are set to ensure the product’s precision.
3.Control system adopts PLC, safety and reliability , easy operation and high automation.
|
型号 Model |
XY-3I(F)635 | XY-3I(F)760 | XY-3I(F)1120 | XY-3I(F)1200 | XY-3I(F)1450 | XY-3I(F)1530 | XY-3I(F)1730 | XY-3I(F)1830 | XY-3I(F)2250 | XY-3I(F)2800 | XY-3I(F)3400 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
辊筒直径(mm) Roll diameter |
230 | 305 | 360 | 400 | 450 | 510 | 610 | 660 | 710 | 820 | 900 | |
|
辊筒工作长度(mm) Roll working length |
635 | 760 | 1120 | 1200 | 1450 | 1530 | 1730 | 1830 | 2250 | 2600 | 3400 | |
|
驱动辊线速度(m/min) Drive roll liner speed |
1.3～13 | 1.7～17 | 2.2～22 | 2.5～25 | 2.5～25 | 2～25 | 4～40 | 3～30 | 2.5～25 | 3～30 | 3.5～35 | |
|
制品宽度(mm) Max.product width |
500 | 550 | 900 | 1000 | 1200 | 1300 | 1500 | 1600 | 2000 | 2200 | 3100 | |
|
制品小厚度(mm) Min.product thickness |
0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | |
|
电机功率(kw) Motor power |
15 | 30 | 40 | 55 | 75 | 90 | 160 |
90×2, 110×1 |
75×3 | 160×3 | 220×3 | |
|
外形尺寸(mm) Overall dimension |
长(L) | 3170 | 3330 | 4780 | 5540 | 5850 | 6170 | 7990 | 7950 | 9810 | 10100 | 7900 |
| 宽(W) | 1140 | 3290 | 1680 | 2180 | 2100 | 2060 | 2380 | 2960 | 3250 | 3340 | 4500 | |
| 高(H) | 1730 | 2320 | 2090 | 2600 | 3000 | 4340 | 4530 | 4340 | 4580 | 6070 | 5680 | |
|
重量(t) Weight |
5 | 7 | 11.6 | 15 | 25 | 32 | 48 | 55 | 90 | 133 | 150 | |
