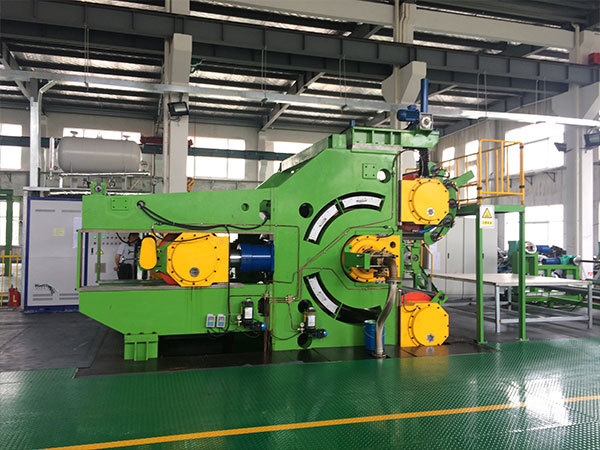

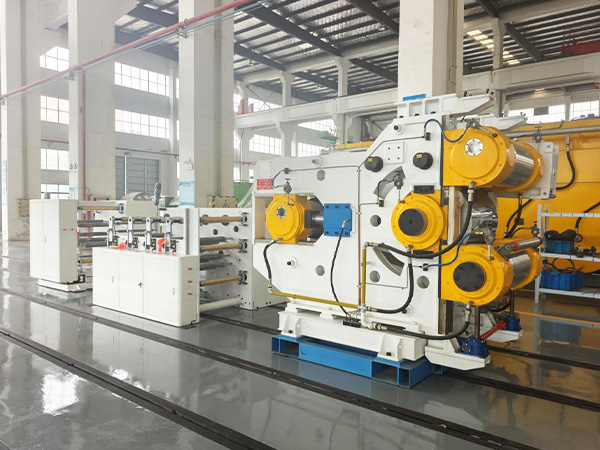

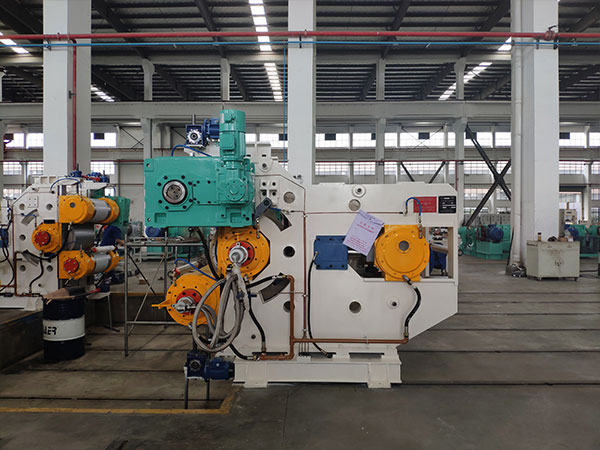

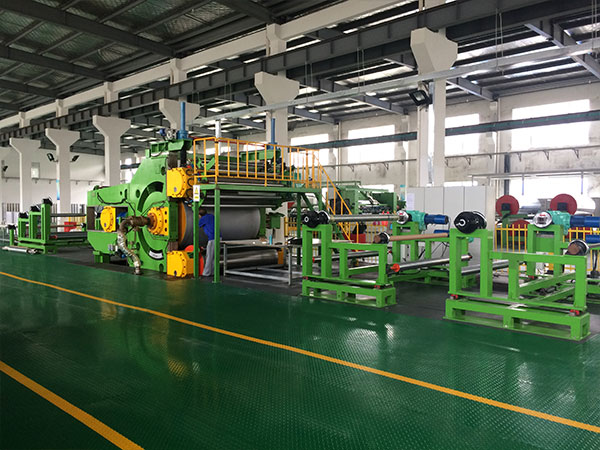

It is mainly used for continuously vulcanizing various kinds of rubber plates, conveyor belt ,waterproof material,printing mackintosh, rubber and plastic floor mat and other board- shaping products.
1. Continuous vulcanizing provides high production efficiency and stable quality.
2. Compact structure, stable control, easy maintenance and converting different products.
3.Automatic or manual error correcting device and auxiliary equipment such as let off &wind up device can be customized designed.
4. Control system adopts PLC for convenient temperature, pressure, speed , automatic control procedure setting and high degree automation.
|
型号 Model |
DLGφ710X700 | DLGφ710X1450 | DLGφ1000X1600 | DLGφ1250X1800 | DLGφ1500X2400 | DLGφ2000X3200 | DLGφ2500X4200 | |
|---|---|---|---|---|---|---|---|---|
|
硫化鼓直径 (mm) Drum diameter |
710 | 710 | 1000 | 1250 | 1500 | 2000 | 2500 | |
|
制品宽度（mm) Max. Product width |
500 | 1150 | 1300 | 1500 | 2100 | 2900 | 3800 | |
|
制品厚度（mm） Product thickness |
0.5-5 | 0.5-5 | 1-8 | 1-8 | 1-10 | 1-10 | 1-10 | |
|
钢带总拉力(kn) Total pulling force of steel belt |
300 | 380 | 900 | 1100 | 1500 | 3300 | 5000 | |
|
硫化鼓线速度(m/min) Drum liner speed |
0.2-2 | 0.2-2 | 0.2-2 | 0.2-2 | 0.2-3 | 0.2-3 | 0.2-3 | |
|
硫化压力(mpa) Curing pressure |
0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | 0.5-3.8 | |
|
使用蒸汽压力(mpa) Steam pressure |
≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | |
|
主电机功率(kw) Main motor power |
2.2 | 3 | 3 | 3 | 5.5 | 7.5 | 11 | |
|
卷取功率(kw) Winding power |
0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 1.5 | 1.5 | |
|
外形尺寸 Overall dimension |
长（L） | 2630 | 2630 | 3300 | 5790 | 6300 | 7200 | 8800 |
| 宽（W） | 2440 | 3190 | 3300 | 4870 | 4900 | 7100 | 8400 | |
| 高（H） | 2730 | 2730 | 3500 | 4970 | 5100 | 5800 | 6200 | |
|
重量(t) Weight |
15 | 20 | 25 | 28 | 32 | 100 | 200 | |
