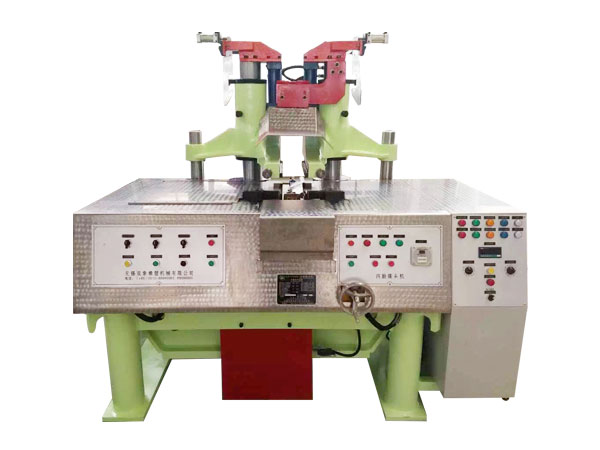

This machine is used to splice butyl tube automatically. It’s also applicable to splice natural rubber tube.
|
型号 Model |
LJD-Y450 | LJD-Y560 | LJD-Y630 |
|
内胎平叠宽度范围(mm) Range of inner tube width |
90-450 | 250-560 | 340-630 |
|
双层厚度(mm) Max.thickness of double layers |
12 | 18 | 20 |
|
工作压力(MPa) Max working pressure |
3.92 | 4.41 | 4.7 |
|
对接力(KN) Max relay force |
68.6 | 73.6 | 78.45 |
|
夹持力(KN) Max clamping force |
10.79 | ||
|
小夹持力(KN) Min clamping force |
3.92 | ||
|
全机重量(t) Weight |
4 | ||
|
外形尺寸 Overal dimension(L*W*H) |
Main body:（L*W*H）2680*2200*1900mm Hydraulic station:（L*W*H）1180*800*1580mm |
||
