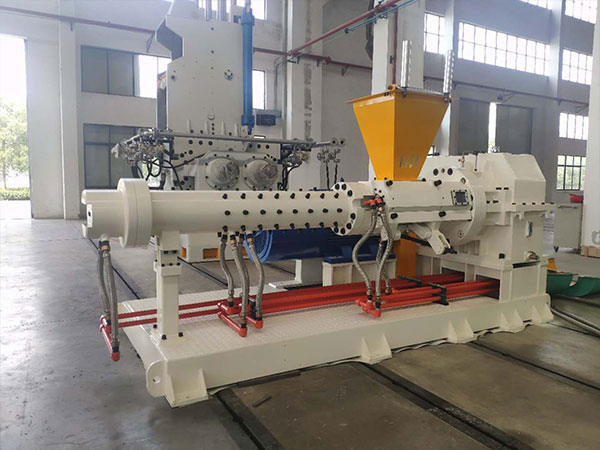

It is mainly used to extrude semi-finished rubber products such as tyre tread, inner tube, rubber strip, capsule, external encapsulating of wire & cable, etc.
1.Machine body has a spiral channel with good heat conductive effect. It is equipped with a feeding roll to reinforce feeding capability in feeding section.
2.Srew and bushing all adopted nitrided steel with nitriding treatment, so it has enough strength and good wear resistance.
3.Temperature control is realized by hot water circulating device as auto sectional control.
4.It can realize different usage such as feeding, squeezing sheet, squeezing tube, squeezing profiles, etc by equipped with different head.
型号 Model |
XJW-65×12D | XJW-90×12D | XJW-120×12D | XJW-150×16D | |
---|---|---|---|---|---|
螺杆直径(mm) Screw diameter |
65 | 90 | 120 | 150 | |
螺杆长径比L/D Screw L / D ratio |
12/1 | 12/1 | 12/1 | 16/1 | |
螺杆转速 (r/min) Max.screw speed |
70 | 60 | 50 | 45 | |
电动机型号 Motor Model |
Y180-4 | Y280S-6 | Z4-225-11 | Z4-250-31 | |
电机功率(kw) Motor power |
22 | 45 | 75 | 132 | |
中心高 Center height |
1200 | 900 | 950 | 950 | |
冷却水压力 (mpa) Cooling water pressure |
≥0.2 | ≥0.2 | ≥0.2 | ≥0.2 | |
生产能力 (kg/h) Max.Production capacity |
80 | 260 | 500 | 900 | |
外形尺寸 (mm) Overall dimension |
长(L) | 1500 | 2280 | 2789 | 6000 |
宽(W) | 780 | 1350 | 1318 | 1545 | |
高(H) | 1360 | 1370 | 1706 | 1545 | |
重量(t) Weight |
2000 | 2500 | 4850 | 9000 |
