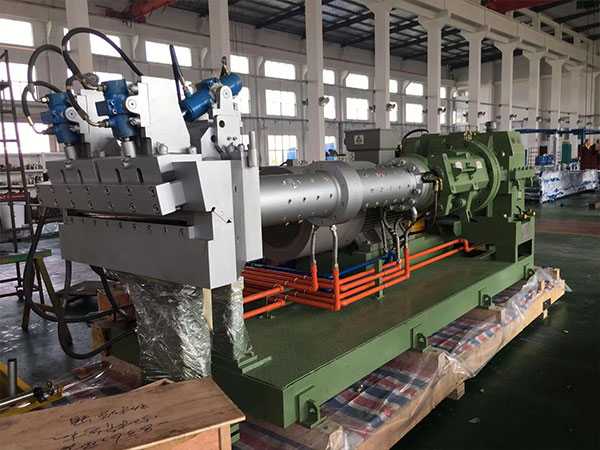

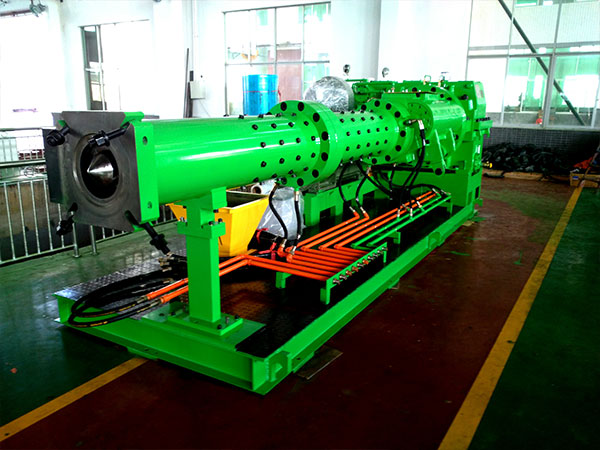

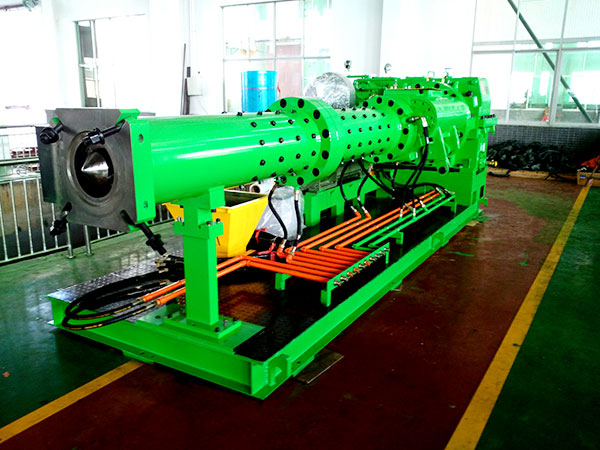

It is mainly used for extrusion of various rubber products and feeding rubber.
1.The barrel is composed of several zones. In the feeding zone, the spiral slots work with the side rolls to enhance feeding capability and in the plastication and extrusion zone ,different numbers of pins are fitted.
2.The screw has excellent geometric precision and is wear-resistant for being processed by nitrogenation treatment.
3.A hot water circulation device automatically control temperature in each zone.
4. It has the characteristics of good plasticizing effect, strong extruding ability, low temperature of rubber flow and smooth operation.
|
参数/型号 Model |
XJD-90×14D | XJD-120×14D | XJD-150×16D | XJD-200×12D | XJD-200×16D | XJD-250×12D | XJD-250×16D | |
|---|---|---|---|---|---|---|---|---|
|
螺杆直径(mm) Screw diameter |
90 | 120 | 150 | 200 | 200 | 250 | 250 | |
|
螺杆长径比L/D Screw L / D ratio |
14/1 | 14/1 | 16/1 | 12/1 | 16/1 | 12/1 | 16/1 | |
|
螺杆转速 (r/min) Max.Screw Speed |
60 | 50 | 43 | 33 | 33 | 26 | 26 | |
|
喂料口尺寸(mm) Feeding hole size |
120×80 | 160×110 | 200×165 | 260×152 | 260×152 | 340×190 | 340×190 | |
|
销钉行数 Row quantity of pin |
8 | 10 | 10 | 8 | 12 | 10 | 12 | |
|
毎行销钉数 Pin quantity of each row |
6 | 6 | 8 | 10 | 10 | 12 | 12 | |
|
挤出电动机型号 Motor model |
Z4-180-41 | Z4-225-11 | Z4-250-11 | Z4-280-32 | Z4-315-12 | 24-315-42 | Z4-355-12 | |
|
主电机功率 (kw) Main motor Power |
55 | 110 | 220 | 315 | 355 | 400 | 450 | |
|
热水循环区段 Hot water circulation section |
3 | 3 | 4 | 4 | 4 | 4 | 4 | |
|
热水循环加热总功率(kw) Total power of hot water circulating heating |
32 | 32 | 42 | 42 | 54 | 48 | 54 | |
|
生产能力 (kg/h) Max.Production capacity |
360 | 800 | 1500 | 2600 | 2600 | 3600 | 3600 | |
|
外形尺寸 (mm) Overall dimension |
长（L） | 2300 | 3250 | 3800 | 5030 | 5900 | 5400 | 6077 |
| 宽(W) | 1060 | 1250 | 1590 | 1950 | 1950 | 2400 | 2400 | |
| 高(H) | 1450 | 1650 | 1700 | 1850 | 1850 | 1920 | 1920 | |
|
重量(t) Weight |
3.2 | 5.7 | 7.2 | 15 | 15 | 18 | 21 | |
