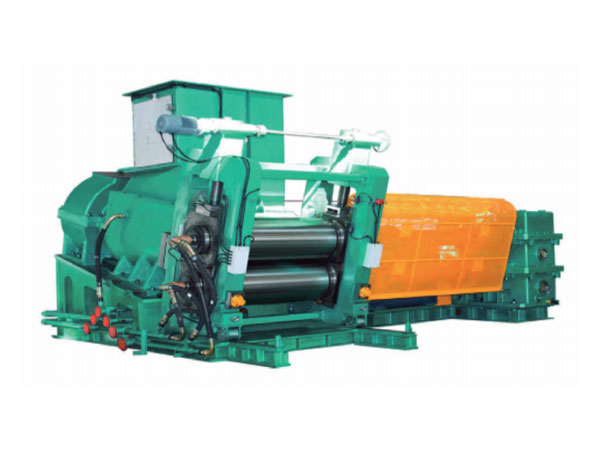

It is used for continuously extruding and sheeting plasticated rubber, master batch and final batch into as a downstream auxiliary of internal mixer.
1.It consists of twin screw extruder and two roll sheeting machine.
2.Sheeting machine part is portable ,which is convenient to maintenance and clean.
3.Sloping structure at the bottom of machine make rubber flow smoothly and reduce inner cavity residue.
4.Surface of screw ,barrel, hopper is coated with wear resistant alloy to enhance service life.
型号 Model |
XJY-SZ602X250 | XJY-SZ743X330 | XJY-SZ936X416 | XJY-SZ1093X486 | |
---|---|---|---|---|---|
螺杆形状 Shape of screw |
变距变深全收敛式锥形 Variable pitch and depth conical screw |
||||
螺杆数量 Quantity of screw |
2 | ||||
螺杆中心线排列 Arrange of screw central-line |
带角度 With angle | ||||
螺杆直径(mm) Screw diameter |
Φ602XΦ250 | Φ743XΦ330 | Φ936XΦ416 | Φ1093XΦ486 | |
螺杆转速(r/min) Screw speed |
2.2~22 |
2~20 (2.65~26.5) |
2.2~22 (2.8~28) |
1.8~18 | |
挤出电机功率(kw) Motor power of extruder |
90 | 160(132) |
220、250 (180、200) |
355 | |
压片辊尺寸(DXL)/mm Sheeting roll size |
Φ400x800 | Φ450x1000 | Φ508x1070 | Φ610x1400 | |
压片辊转速(r/min) Sheeting roll speed |
2.5~25 | 2.5~25 (3.2~32) | 3.0~30 | 2.5~25 | |
辊筒工作调距间隙/mm Nip range |
3~10 | ||||
外型尺寸/mm Overall dimensions |
长(L) | 4570 | 4600 | 5700 | 6850 |
宽(W) | 4320 | 5200 | 5740 | 6700 | |
高(H) | 2720 | 2600 | 3600 | 3870 | |
重量/t Weight |
24.5 | 30 | 46 | 65.6 | |
配套密炼机总容积/L Total volume of matched internal mixer |
160 | 270 | 370 | 650 |
